Powerful Functionalities

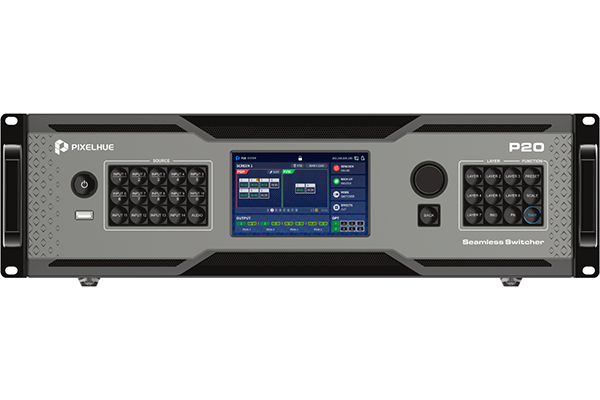

The P20 and P10 employ FPGA-based highperformance image enhancement architecture and real 4K60p 4:4:4 10-bit internal video processing. With dual working modes, versatile 4K connectivity, high-quality video processing, multi-screen configuration and control, flawless image mosaic, LCD bezel compensation, multi-projector edge blending and much more, the P20 and P10 are perfect fits for small/medium-sized live events and many fixed installations requiring high reliability, unrivaled ease of use, optimal image quality and cutting-edge live 4K processing features. Seamless transitions, smooth video display and various visual effects maximize audience engagement.
Dual working modes make the P20 and P10 more capable, allowing users to choose the switcher mode or PGM only mode as needed. Multi-screen configuration and control can meet more application requirements. The P20 supports up to 12x DL layers or 6x 4K layers and the P10 supports up to 6x DL layers or 3x 4K layers. Layer layout is customizable and a variety of layer effects such as DSK, mask, crop, flip, cut & fill, border, shadow and KeyFrame are supported. Up to 128 screen presets and 1024 layer presets can be saved for easy recall. High-resolution images can be captured from live inputs and outputs and used as BKG. In addition, the P20 allows for free conversion between SDR, HDR10 and HLG.
Longer Transmission Distance
10G optical fiber ports are provided for copying HDMI 2.0 output, allowing the P20 and P10 to transmit signals to the LED controller (VX1000, VX600, VX400, H series, MX40 Pro, MCTRL 4K and NovaPro UHD Jr from NovaStar are currently supported) over a long distance (up to 10 km with SMF) without fiber converters. This method not only ensures the signal stability but also lowers the transmission cost, making the P20 and P10 ideal for long-distance signal transmission.
Flexible Control Options
In addition to superior performances and outstanding visual experience, the P20 and P10 are exceptionally easy to control via any of the following options. Multiple switchers can be controlled simultaneously by a single event controller/PC with PixelFlow when they are on the same LAN and in the same project.
• Fully-featured front panel buttons and 5-inch graphical LCD
• Versatile event controller U5/U5 Pro
• All-new event management software PixelFlow
• Third-party control system Stream Deck (Companion integrated into the P20/P10)
Superb Stability & Reliability
The P20 and P10 are created for applications requiring the highest stability and uptime. Different backup methods are supported, including device backup, input source backup, automatic output backup. Once the primary input source is not stable or disappears, it will be switched to the backup source seamlessly. When the primary device fails, the backup device will take over the work immediately to ensure uninterrupted operation. Seamless switching from the primary to backup device or connector with no downtime makes the products highly reliable and worry-free.
What's more, the products have passed a series of rigorous drop tests, shock & vibration ;tests and thermal tests, ensuring the products can survive in any kind of road trip or event environment.
