Description
The EP4T/R fiber extender employs advanced fiber optic technology for flawless, long-distance video and audio transmission via optical fiber, surpassing traditional cable limitations.
Featuring 8-bit/10-bit lossless compression, the EP4T/R offers unparalleled video signal quality (4Kx2K@60Hz), ensuring a stunning visual experience. Its compact, plug-and-play design simplifies installation, allowing seamless signal extension without hassle.
Versatile and reliable, the EP4T/R is perfect for home theaters, conference rooms, and monitoring centers, delivering stable HD video over extended distances for both commercial and personal applications.

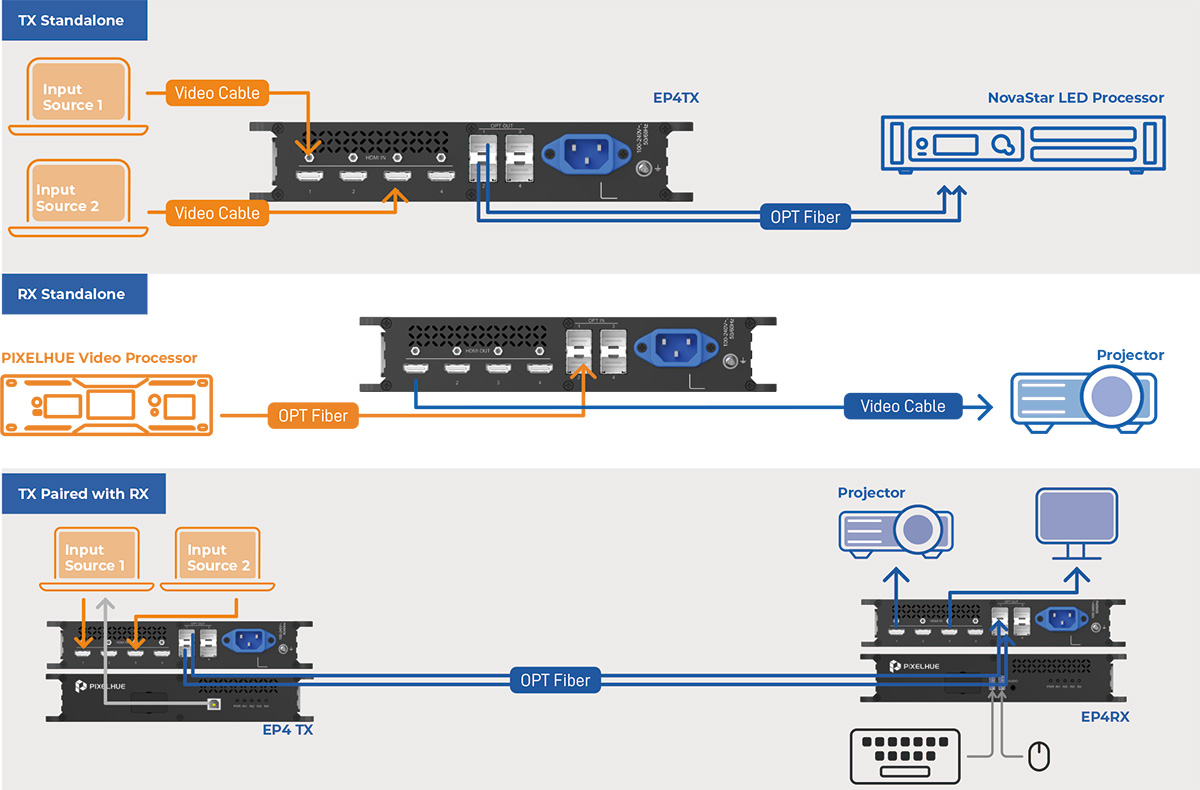

Usage Scenarios
TX Specifications
HDMI Input
| Quantity | 4 × HDMI 2.0 |
| Standard | HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution | Max input resolution: 3840×2160@60Hz
Max resolution width/height: 8192 pixels |
OPT Output
| Quantity | 4 × 10G OPT |
| Standard | HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution | For sandalone use, a single port resolution: up to 3840×2160@30Hz
ForRX and TX paired use, a single OPT port resolution: up to 3840×2160@60Hz
Max resolution width/height per connector: 8192 pixels |
RX Specifications
OPT Input
| Quantity | 4 × 10G OPT |
| Standard | HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution | For sandalone use, a single port resolution: up to 3840×2160@30Hz
ForRX and TX paired use, a single OPT port resolution: up to 3840×2160@60Hz
Max resolution width/height per connector: 8192 pixels |
HDMI Output
| Quantity | 4 × HDMI 2.0 |
| Standard | HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution | Max input resolution: 3840×2160@60Hz
Max resolution width/height: 8192 pixels |
