Description

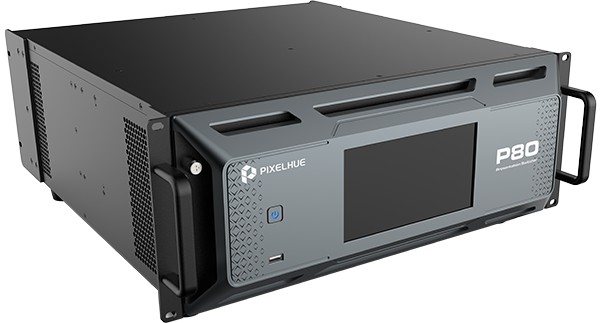

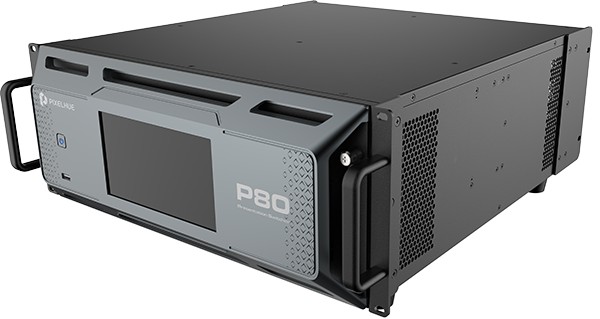

Command Every Screen Control Every Layer
P80 is not just another switcher-it's the command center for your most demanding productions, Built to handle up to 20x 4K inputs with effortless precision, P80 empowers operators to master every screen and every layel without compromise. From flawless keying and seamless cut & fill to dramatic live effects, transitions feel instantaneous and under total control。

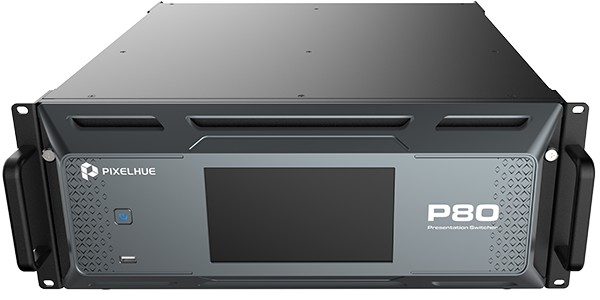

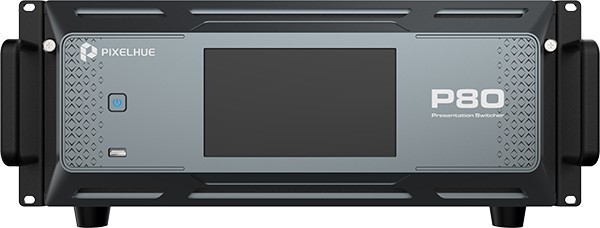

Designed for mission-critical shows, P80 delivers dual independent MVR outputs, full-link HDR conversion, and rock-solid reliability. lts 7-inch touchscreen and PixelFlow integration put streamlined control at your fingertips, whether you're driving a live broadcast, a massive stage, or ahigh-stakes corporate event. With P80, you don't just manage visuals you command the entire experience.

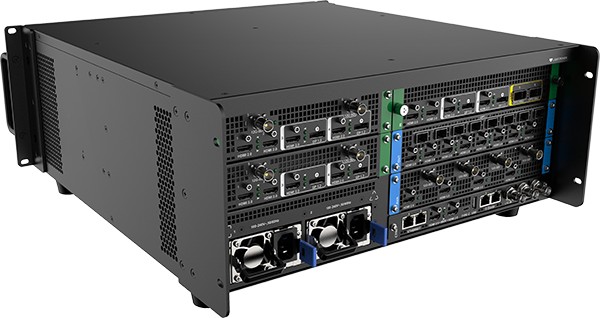

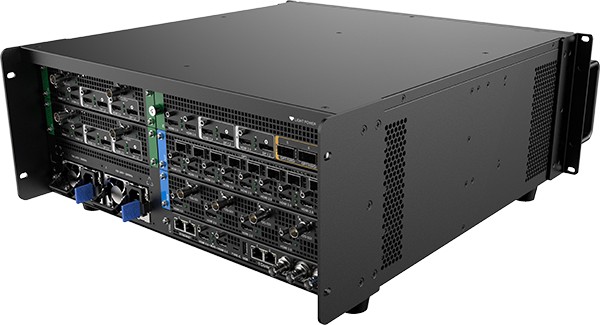

Versatile 4K Connectivity

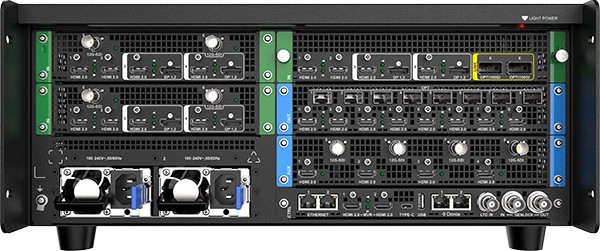

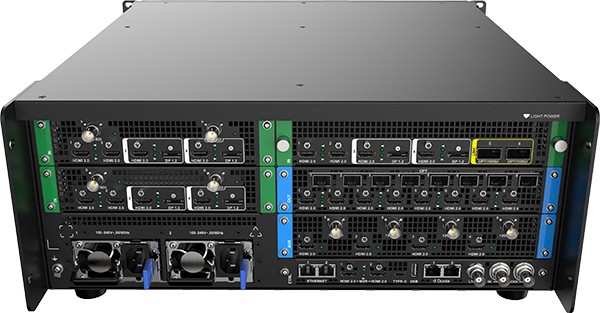

The P80 presentation switcher features versatile 4K connectivity including HDMl 2.0, DP 1.2 and 12G-SDl. The P80 is designed with 12x fixed concurrent 4K inputs and a swappable input card with support for P_HDMI2.0_DP1.2_OPT Link Card and 08 HDMI2.0+DP1.2+12G-SD Input Card, making the P80 more capable. The P80 comes with 8x HDMl2.0 main output connectors allowing for up to 4x 4K concurrent outputs (copy mode) or 8x DL concurrent outputs (split mode).
The P80 also supports 4x 4K flex outputs, 4x 12G-SDI matrix outputs, and 2x dedicated Multiviewer outputs. Additionally, 8x 10G SFP optical ports are offered to copy the HDMI 2.0 outputs, allowing for up to 4x 4K outputs.
Powerful Functionalities
The P80 employs FPGA-based high-performance image enhancement architecture and real 4K60p 4:4:4 10-bit internal video processing. The P80 supports up to 8x 4K mixing main layers and 4x 4K mixing PIP layers. Up to 256 presets and 256 layer presets can be saved for easy recall. This powerful multi-screen and multi-layer presentation switcher is ideal for medium to large-scale live events and permanent video wall installations requiring high reliability, unrivaled ease of use, optimal image quality and cutting-edge live 4K processing features. Seamless transitions, smooth video display and various visual effects maximize audience engagement.
Flex Output
The P80 comes with 4x HDMI 2.0 for flex outputs which can be freely configured as independent screens or edge - blended widescreens. Transition effects such as fade, test patterns, AOl, virtual pixels, and more are available for the flex screens. Up to 4x 4K mixing PIP layers and 4x still BKG are supported, allowing for adjustment of layer position, size and Z - order, layer effects including flip, crop and mask, layer color adjustment, and layer presets. In addition, flex outputs support Multiviewer. Auxiliary devices such as teleprompters also can be connected to the flex output connectors. The flex outputs expand the range of the application scenarios of the P80.
SDI Matrix
4x 12G - SDI are provided for matrix outputs, allowing any content from the input sources such as HDMI 2.0, DP 1.2 and 12G - SDI, MVR, PGM and flex outputs to be mapped to the SDI matrix. SDI matrix offers more flexible output options for users and enhances the versatility of the P80.
Flexible Control Options
The P80 is exceptionally easy to control via any of the following options:
• 7 - inch graphical touchscreen on the front panel
• Event controller U5/U5 Pro
• Event management software PixelFlow
• Third - party control system Stream Deck (Companion integrated into the P80)
In addition, multiple P80 units can be controlled simultaneously from a single event controller/PC with PixelFlow when they are on the same LAN and in the same project.

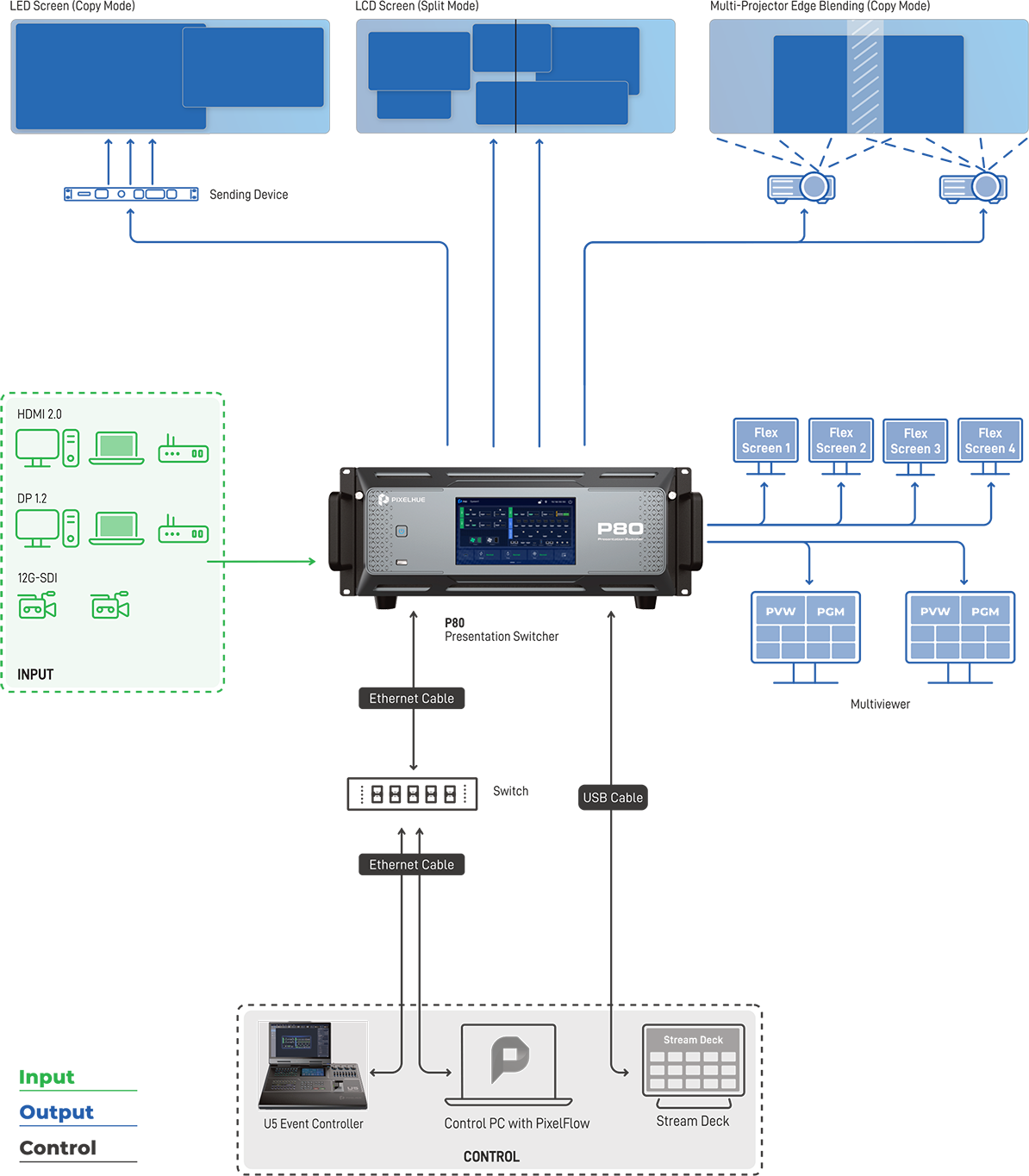

Usage Scenarios
Specification
Technical Specification
| Inputs | • 12x fixed 4K concurrent inputs:
◦ 4x HDMI 2.0
◦ 4x HDMI 2.0/DP1.2 (Only one type of connector can be selected as the input source at the same time.)
◦ 4x 12G - SDI
• HDMI 2.0:
◦ Maximum resolution: 4096×2160@60Hz 8bit 4:4:4
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 7680 pixels (1080×7680@60Hz)
◦ Dynamic range: HDR10/HLG/SDR
◦ Quantization range: Full/Limited
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 and HDCP 1.4 compliant
◦ No support for interlaced video signal
◦ Support for 8 - channel embedded audio (24bit/48kHz)
• DP 1.2:
◦ Maximum resolution: 4096×2160@60Hz 10bit 4:4:4
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 7680 pixels (1080×7680@60Hz)
◦ Dynamic range: HDR10/HLG/SDR
◦ Quantization range: Full/Limited
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 and HDCP 1.3 compliant
◦ No support for interlaced video signal
◦ Support for 8 - channel embedded audio (24bit/48kHz)
• 12G - SDI:
◦ Support for ST - 2082 (12G), ST - 2081 (6G), ST - 424 (3G), ST - 292 (HD), and ST - 259 (SD) video inputs
◦ Compatible with SD - SDI, HD - SDI, 3G - SDI and 6G - SDI
◦ Maximum resolution: 4096×2160@60Hz 10bit 4:2:2
◦ Support for interlaced video signal
◦ Support for 8 - channel embedded audio (24bit/48kHz) |
| Main Outputs | • 8x HDMI 2.0 main output connectors
◦ Up to 4x 4K concurrent main outputs in copy mode
◦ Up to 8x DL concurrent main outputs in split mode
• 8x 10G SFP optical ports are offered to copy the HDMI 2.0 outputs.
• HDMI 2.0:
◦ Maximum resolution: 4096×2160@60Hz 8bit 4:4:4
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 7680 pixels (1080×7680@60Hz)
◦ Bit depth: 8bit/10bit/12bit
◦ Color space: YCbCr/RGB
◦ Dynamic range: HDR10/HLG/SDR
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 and HDCP 1.4 compliant
◦ Support for interlaced video signal
◦ Support for 8 - channel embedded audio (24bit/48kHz) |
| Flex Outputs | • 4x HDMI 2.0 flex output connectors
• Configurable as independent screens or edge - blended widescreens with support for Multiviewer, transition effects such as fade, test patterns, AOl, virtual pixels, etc.
• Up to 4x 4K mixing PIP layers and 4x still BKG with support for adjustment of layer position, size and Z - order, layer effects including flip, crop and mask, layer color adjustment, and layer presets.
• Auxiliary devices such as teleprompters also can be connected.
• HDMI 2.0:
◦ Maximum resolution: 4096×2160@60Hz 8bit 4:4:4
◦ Maximum width: 8192 pixels (8192×1080@60Hz)
◦ Maximum height: 7680 pixels (1080×7680@60Hz)
◦ Bit depth: 8bit/10bit/12bit
◦ Color space: YCbCr/RGB
◦ Dynamic range: HDR10/HLG/SDR
◦ EDID management (support for standard resolutions and custom resolutions)
◦ HDCP 2.2 and HDCP 1.4 compliant
◦ Support for interlaced video signal
◦ Support for 8 - channel embedded audio (24bit/48kHz) |
| SDI Matrix | • 4x 12G - SDI matrix for mapping any content from the input sources, MVR, PGM and flex outputs to the output
• 12G - SDI
◦ Compatible with HD - SDI, 3G - SDI and 6G - SDI
◦ No support for bit depth and color space settings
◦ Support for 8 - channel embedded audio (24bit/48kHz) |
| Dante Audio Networking | • Dual redundancy Gigabit Ethernet ports (AES67 compliant)
• Audio de - embedding/embedding on every input & output (raw audio)
• De - embedded audio channels can be routed directly to the Dante network
• Audio channels from external Dante audio processor can be re - embedded for sending to display, streaming or recording device
• 64×64 Dante channels @48 kHz |
| Multiviewer | • 2x HDMI 2.0 for connecting to Multiviewer screens to monitor all the input sources, PVW and PGM.
• Allows users to select independent or copy mode and select a standard resolution and frame rate for the connectors.
◦ In independent mode, 2x concurrent DL outputs are supported.
◦ In copy mode, 1x 4K output and 1x copying output are supported.
• A variety of Multiviewer layout templates are provided and custom layout is supported.
• The Multiviewer windows can be resized and repositioned, and the width, height and color of the border can be adjusted.
• Intuitive and upgraded MVR interaction, including maintaining source aspect ratio, snapping between canvas and MVR window, adjusting background color, and customizing UMD color, display content, and font settings, as well as canvas scaling |
| Ethernet | • 2x Gigabit Ethernet ports used for control and input view
• One works as primary and the other as backup.
• Two Ethernet ports share the same IP address. |
| Genlock | • Genlock synchronization signal input
• Genlock synchronization signal output (with support for loop-through) |
| Screens | • Output connectors can be freely configured as independent screens or edge - blended widescreens.
• Up to 4x 4K main screens and 4x flex screens are supported.
• Multi - screen mosaic
• Users can arrange the mosaic layout manually or select a layout template. If a connector used for mosaic fails, it can be replaced with another normal connector in the software.
• Edge blending and LCD bezel compensation
• Virtual pixel configuration is supported, simplifying calculations between on - site screen size and P80 - loaded screen pixels.
• AOI (Area of Interest) feature to customize active areas of outputs
• Custom test patterns |
| Layers | • Up to 8x 4K mixing main layers are supported.
• Any of the inputs, Multiviewer, PGM, or local images can be selected as the source of a layer.
• Layers can be repositioned and resized.
• The Z - order of layers can be adjusted.
• Layer names are displayed and can be modified.
• Layer resource usage are displayed in real time.
• Layer effects: DSK, mask, crop, flip, cut & fill, border, shadow and more
• Layer presets: All (or a portion) of the current layer's properties (such as input source, position, size, effects, etc.) can be saved as a layer preset in PixelFlow for easy recall. Up to 256 layer presets can be saved. |
| Presets | • Up to 256 presets can be saved for easy recall.
• Relative and complete presets are supported to satisfy more application requirements.
• Allows users to select preferred parameters such as transition duration and input source to save to a preset.
• Presets can be loaded to PVW or PGM. |
| BKG | • Images imported from the control computer or event controller can be used as BKG.
• Images captured from input sources and PGM can be used as BKG.
• One dedicated still BKG image available on each PGM output. Up to 4 still BKG supported.
• BKG can be turned on or off.
• The BKG image can be changed and deleted.
• The BKG storage capacity is up to 1 GB and PNG/BMP/JPG/JPEG files are supported.
• The BKG image automatically scales to fit the screen while maintaining aspect ratio and is positioned at the bottom layer by default. |
| Transition & Effects | • Seamless transition from PVW to PGM via Take, Cut or T - bar
• Two options for transition between PVW and PGM: Copy and Swap
• Customizable transition duration (0.1s to 10s)
• Fade in and out supported
• Screen freeze and FTB (Fade to Black) supported |
| PixelFlow Software Functionalities | • Long - term stable running
• Upgraded and visualized UI, adaptive to U5/U5 Pro/PC screens
• One click to change skins of U5/U5 Pro buttons
• Software parameter controllable by U5/U5 Pro encoders or faders
• Distinct function areas and hover menu for ease of use
• Fully functional simulator for offline configuration and practice |
| Processing Capability | • FPGA - based high - performance image enhancement architecture
• Ultra - low latency, as low as 1 frame in proper configuration
• BT.601, BT.709, BT.2020, DCI - P3 color space processing support
• Free conversion between SDR, HDR10 and HLG
• Advanced DSK capability: smart key, chroma key and luma key
• Compatible with HDCP 1.3, HDCP 1.4 and HDCP 2.2 |
