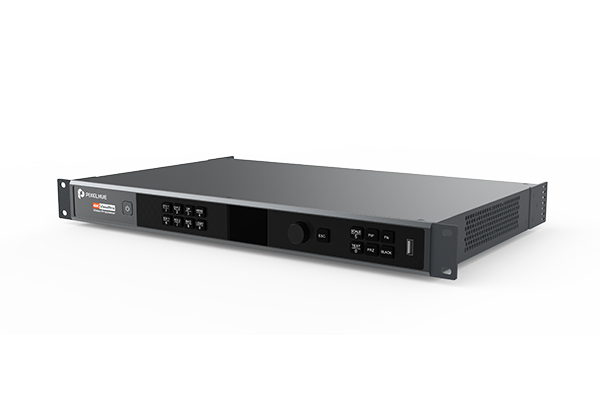

The 4K View Pro is a powerful real 4K video processor with a latency as low as 1 frame, which supports 4K×2K@60Hz video input and output. Hardware has been designed with a robust FPGA system architecture, high-performance Scalar core, and ultra-low latency. The 4K ViewPro allows multiple ultra HD real 4K×2K@60Hz input and output for scaling, switching, and signal conversion to provide a perfect image processing experience. The 4K View Pro can be widely used for high-end rental, stage control, fine pitch LED displays and broadcasting stations.
Inputs
Up to 4K×2K@60Hz 4:2:2 10-bit
Level A & B
Support for ST-2082-1 (12G), ST-2081-1
(6G), ST-424 (3G), ST-292 (HD) and
SMPTE 259 (SD)
Common resolutions
1920×1080i@50/59.94/60Hz
1920×1080@30/50/59.94/60Hz
3840×2160@30/50/59.94/60Hz
Re-drived 12G SDI loop-through output
Up to 4K×2K@60Hz 4:4:4 8-bit
HDCP 2.2 compliant
Backward compatible with HDMI 1.4 and HDMI 1.3
EDID management for VESA, and CVT compliant user timings
3840×1080@30/50/59.94/60Hz
1920×1080@30/48/50/59.94/60Hz
3840×2160@30/60Hz
Up to 4K×2K@60Hz 4:4:4 10-bit
HDCP 1.3 compliant
Backward compatible with DP 1.1
Up to 4K×2K@30Hz, clock frequency up to 165 MHz in single-link mode, 300 MHz in dual-link mode
HDCP 1.4 compliant
Outputs
Max. output width: 8192 pixels
Max. output height: 4096 pixels
Support for VESA/CVT and user timings
Level A
Support for ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 (SD)
Max. output width: 4096 pixels
Up to 4K×2K@30Hz 4:4:4 8-bit
HDBaseT 2.0 & HDBaseT 1.0 compliant
Up to 297 MHz pixel clock
Up to 100 meters over CATx cable
